Description

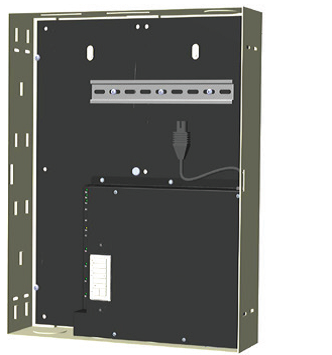

Adds 4 isolated bus segments to a SDN system
Includes bus segment status LEDs
Protects system components from miswiring
Automatic Riser termination
Can mount on-wall or in-wall (between studs)
Din rail mount for animeo® IP Building Controllers
Front cover includes a keyed lock
Separated line and low voltage areas
SDN Decoflex Digital Keypad for convenient local control
TECHNICAL SPECIFICATIONS:
Input: 120V AC, 3.35A Output: 100 SDN Bus Power units per segment
Material: Steel
Dimensions: 18.9” L 14.4” W x 3.5” H (Inner)
Dimensions: 21.3” L 16.4” W x 3.8” H (Inner with door)
Maximum Wiring Distance: Each segment supports 4000 ft. total bus length for all connected devices
Operating Temperature Range: Ambient temperature
Extra Information
Brand:
Somfy
