Description

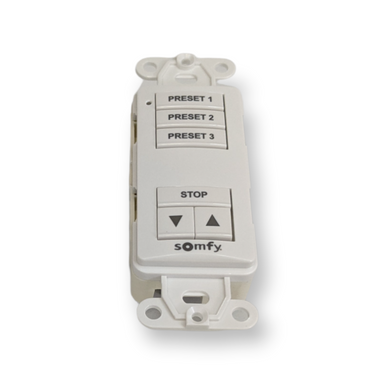

Directly control intelligent motors either individually, by group, facade or an entire building. Each button can be programmed with different commands for Press, Release and Hold Set intermediate position at current shade position via button press Keypad configurations can be exported and backed up Dry contact inputs Custom engraved buttons available Standard Decora size Includes wall plate and dry contact terminal blocks
Input: 24V DC
Power consumption: 10mA supplied by SDN Bus
Material: Face plates and Buttons: Lexan 945U Back housing: Fire retardent grade of ABS-FR 15 Na100
Mounting: Single gang Dimensions: 1 7/16” x 1 1/2” x 4 1/16” (without wall plate)
Face plate dimensions: Standard Decora
Operating temperature range: Ambient temperature
Shipping weight: Actual weight: 0.25 - 0.3 lbs.
LED: Red - Rear (power) (flashes when powered) Front (status) (flashes when transmitting)
Extra Information
Brand:
Somfy
