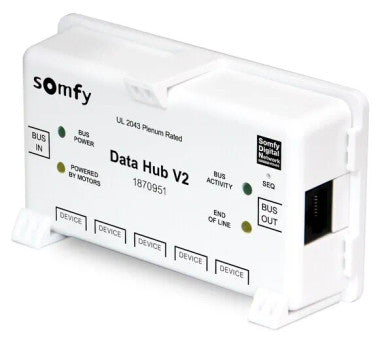

SDN Data Hub V2

     SDN Data Hub V2

    An SDN bus distribution device which adds 5 device ports to an SDN bus line.

Efficient Power and Data Distribution

• Reduced power consumption enables the potential of adding more devices during design.
• Adds 5 device ports to the SDN bus line.
• Powered by motors when two or more motors are connected to device ports (otherwise requires bus power).
• Can power 3 keypads or 1 RTS receiver

Improved Design

• Includes bus segment status LEDs for power, activity and end of line notification.
• Wiring stub length up to 200 ft.
• Uses RJ45 connectors.
• Sequence button allows for testing of motor operation directly on the Data Hub.
• New mounting clip option for easier installation/removal of device.
