Description

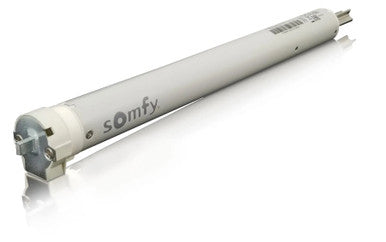

Somfy Roll Up WireFree R28 Wired Starhole Mount Motor — 24V DC tubular motor with Starhole crown and 4-wire hard-wired power connection. SKU: 1002834.
The Roll Up R28 Wired Starhole provides 24V DC tubular motor operation for roller shades requiring hard-wired power and Starhole-style crown mounting. Electronic limits deliver precise, repeatable positioning.
| Part Number | 1002834 |
|---|---|
| Tube Diameter | 28mm |
| Crown Type | Starhole mount |
| Input Voltage | 24V DC |
| Torque | 0.8 Nm |
| Speed | 30 RPM |
| Sound Level | 48–57 dBA |
| Limit Switch | Electronic — 60 turn capacity |
| Over Current Protection | 1A |
| Protection Rating | IP 30 |
| Insulation Class | Class III |
| Operating Temperature | 14°F to 185°F (-10°C to 85°C) |
For a battery-powered WireFree version, see Roll Up WireFree R28 (#1002422) or V2 (#1241162). For wireless RTS control of this motor, pair with RTS Universal Receiver (#1810627).
